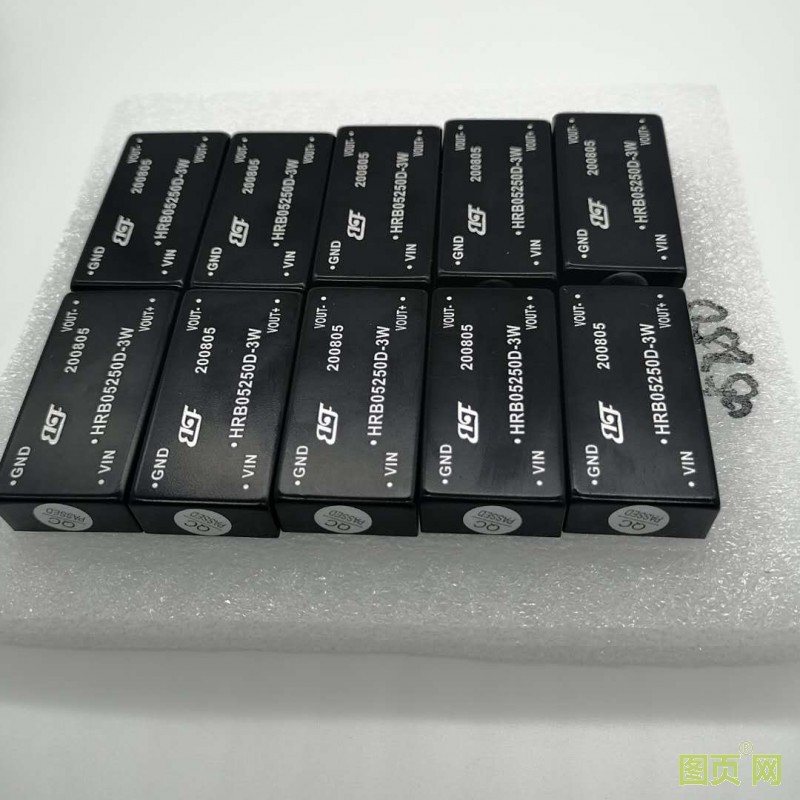

HRB（0.2-5W）系列隔离宽电压输入（2：1）高电压稳压输出DC/DC模块电源
产品特点
● 输入、输出隔离型
● 效率高达 80%以上
● 1*2英寸标准封装25.4*25.4*12.5MM
● 单电压输出，精度2.0%MAX
● 隔离电压1500VDC
●输入可控型，输出可增加调节功能
● 稳压输出，功率W2-5W超宽范围
● 工作温度: -40℃~+85℃
● 金属屏蔽封装，散热性能好
● 温度特性好，工业级温度标准
● 可直接焊在PCB 上
产品应用
HRB W2~5W 系列模块电源是一种DC-DC升压变换器。该模块电源的输入电压分为：4.5~9V、9~18V、及18~36VDC标准（2：1）宽输入电压范围(宽电压输入模块电源是指输入电压可以允许在很宽的范围内变化)。输出单电压：28VDC、30VDC、40VDC、50VDC、60VDC、70VDC、80VDC、90VDC、100VDC、110VDC、150VDC、180VDC、200VDC、250VDC、280VDC、300VDC、320VDC、350VDC、400VDC、450VDC等，具有功率密度大，输出功率高，应用范围广等优点。
产品常用型号举例
|
产品型号 |
输入电压（VDC） |
输出电压 （VDC） |
输出电流 （mA） |
效率 （%） |
|
|
标称值 |
输入范围 |
||||
|
4.5—9.0 |
200 |
1 |
68 |
||
|
HRB05110D-1W |
5 |
4.5—9.0 |
110 |
9 |
70 |
|
HRB12110D-2W5 |
12 .0 |
9.0~18.0 |
20 |
80 |
|
|
HRB12150D-2W |
12 .0 |
9.0~18.0 |
150 |
14 |
82 |
|
HRB12250D-2W |
12 .0 |
9.0~18.0 |
250 |
8 |
85 |
|
HRB24110D-2W |
24 .0 |
18.0~36.0 |
110 |
18 |
82 |
|
HRB24150D-2W |
24 .0 |
18.0~36.0 |
150 |
13 |
84 |
|
HRB24250D-2W |
24 .0 |
18.0~36.0 |
150 |
8 |
86 |
|
HRB12110D-3W |
12 .0 |
9.0~18.0 |
110 |
27 |
80 |
|
HRB12150D-3W |
12 .0 |
9.0~18.0 |
150 |
20 |
82 |
|
HRB12250D-3W |
12 .0 |
9.0~18.0 |
250 |
12 |
85 |
|
HRB24110D-3W |
24 .0 |
18.0~36.0 |
110 |
27 |
82 |
|
HRB24150D-3W |
24 .0 |
18.0~36.0 |
150 |
20 |
83 |
|
HRB24250D-3W |
24 .0 |
18.0~36.0 |
250 |
12 |
85 |
|
HRB12150D-5W |
12 .0 |
9.0~18.0 |
150 |
34 |
85 |
|
HRB12250D-5W |
12 .0 |
9.0~18.0 |
250 |
20 |
86 |
|
HRB24110D-5W |
24 .0 |
18.0~36.0 |
110 |
45 |
85 |
|
HRB24150D-5W |
24 .0 |
18.0~36.0 |
150 |
34 |
87 |
|
HRB24250D-5W |
24 .0 |
18.0~36.0 |
250 |
20 |
88 |
|
HRB2450D-5W |
24 .0 |
18.0~36.0 |
50 |
100 |
87 |
|
HRB2460D-5W |
24 .0 |
18.0~36.0 |
60 |
83 |
85 |
|
HRB2470D-5W |
24 .0 |
18.0~36.0 |
70 |
71 |
84 |
|
HRB2480D-5W |
24 .0 |
18.0~36.0 |
80 |
62 |
86 |
|
HRB2485D-5W |
24 .0 |
18.0~36.0 |
85 |
59 |
85 |
|
HRB2490D-5W |
24 .0 |
18.0~36.0 |
90 |
55 |
88 |
|
HRB24100D-5W |
24 .0 |
18.0~36.0 |
100 |
50 |
87 |
|
HRB24270D-5W |
24 .0 |
18.0~36.0 |
270 |
18 |
84 |
|
HRB24280D-5W |
24 .0 |
18.0~36.0 |
280 |
17.5 |
86 |
|
HRB24290D-5W |
24 .0 |
18.0~36.0 |
290 |
17 |
88 |
|
HRB24300D-5W |
24 .0 |
18.0~36.0 |
300 |
16.6 |
87 |
|
HRB24320D-5W |
24 .0 |
18.0~36.0 |
320 |
15.6 |
85 |
|
HRB24350D-5W |
24 .0 |
18.0~36.0 |
350 |
14 |
84 |
|
HRB24400D-2W |
24 .0 |
18.0~36.0 |
400 |
5 |
87 |
|
HRB24250D-2W |
24 .0 |
18.0~36.0 |
250 |
8 |
86 |
|
HRB24350D-2W |
24 .0 |
18.0~36.0 |
350 |
5 |
88 |
|
HRB24180D-2W |
24 .0 |
18.0~36.0 |
180 |
11 |
84 |
|
HRB24110D-3W |
24 .0 |
18.0~36.0 |
110 |
27 |
86 |
|
HRB24120D-3W |
24 .0 |
18.0~36.0 |
120 |
25 |
88 |
|
HRB24200D-3W |
24 .0 |
18.0~36.0 |
200 |
15 |
87 |
|
HRB24450D-5W |
24 .0 |
18.0~36.0 |
450 |
11 |
85 |
